特點及應用| Characteristics and Application

　　卷繞機主要用于纖維卷繞，也可在輕工、紡織、電子等生產領域使用。本機器具有絲筒成形好，張力恒定，能耗低等特點。

　　技術參數：

　　卷繞機繞絲線速度：250m/min

　　電源：AC380V  50HZ

　　電機功率：500W

　　連接電纜3×2.5   R.S.J.MP

　　卷繞筒管尺寸： Φ94（內徑）×Φ104（外徑）×290（長度）

　　卷繞成型尺寸：Φ0-250MM-250MM

　　往復行程：250mm

　　單錠面板尺寸：寬×高490×330

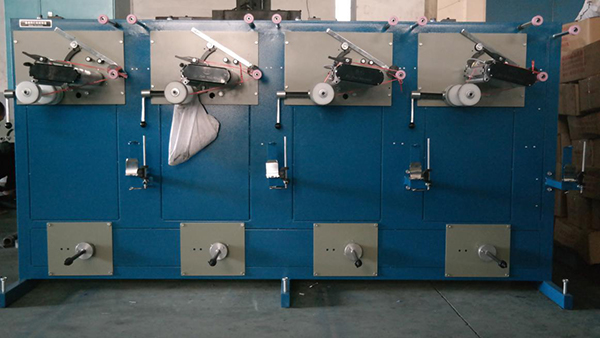

　　The winding machine is mainly used for fiber winding, and also can be used in light industry, textile, electronics and other production areas.The machine has the characteristics of good silk tube forming, constant tension and low energy consumption

　　Technical parameters:

　　Winding speed：250m/min

　　Power：AC380V  50HZ

　　Motor power：500W

　　Connect the cable：3X2.5  R.S.J.MP

　　Winding bobbin size：Inside diameter x Outside diameter x length（mm）94X104X290（The inner diameter and length have different requirements can be customized in the range）

　　Winding the size：Φ0-250MM-250MM

　　Reciprocating stroke：250mm

　　Single spindle panel size：Wide x high（mm）490X330
