電源：AC380V/220V  50HZ/60HZ

　　電機功率：120W-370W

　　電機轉速：1400r/min

　　連接電纜：4×1.5   R.S.J.MP

　　卷繞筒管尺寸：內徑×外徑×長度 58×68×230（內徑和長度有不同要求可在范圍內為您定做）

　　往復行程：203/254

　　單錠面板尺寸：寬×高477×330

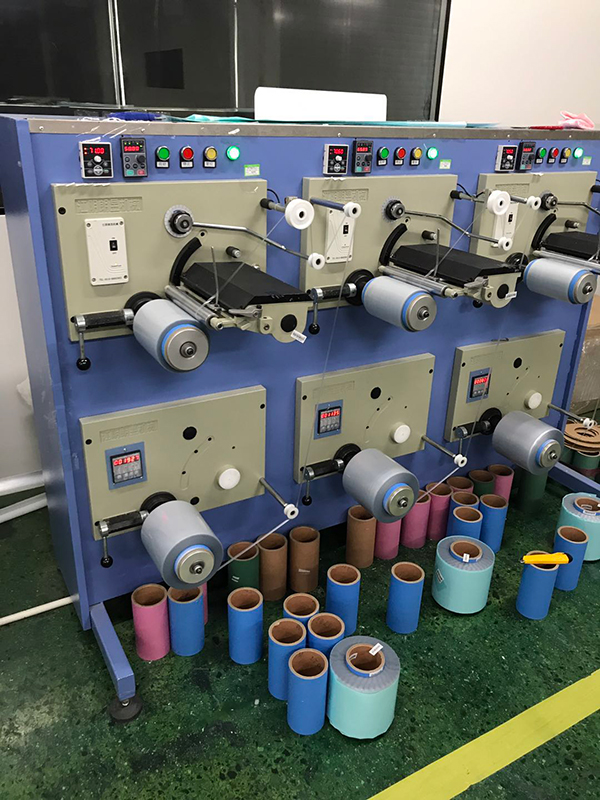

　　Applicable to all kinds of tape, rolls and rolls, rolls and rewinding of defective products.The most characteristic of this machine: it can rearrange the uneven material and other products to reduce the defective rate.The different width of the rewinding can be adjusted by adjusting the adjusting guide wheel to achieve the smoothness of the uneven material.The tension of the coil is controlled by the sensor, which can be adjusted by the tension of different 　　　materials.Equipped with meter, automatic stop setting

　　Technical parameters:

　　Winding speed：0-280m/min（Can be set according to customer requirements）

　　The maximum diameter of the drum：250mm

　　Power：AC380V/220V  50HZ/60HZ

　　Motor power：120W-370W

　　Motor speed：1400r/min

　　Connect the cable：4×1.5   R.S.J.MP

　　Winding bobbin size：Inside diameter x Outside diameter x length（mm）58X68X230（The inner diameter and length have different requirements can be customized in the range）

　　Reciprocating stroke：203/254mm

　　Single spindle size：475mm×330mm
