特點及應用| Characteristics and Application

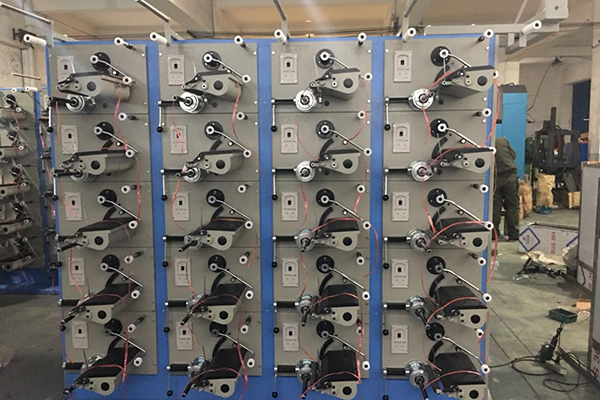

卷繞機主要用于化纖單絲的收卷，也可在輕工、紡織、電子等生產領域配套使用。本公司收卷機具有線速度高、絲筒成形好、張力恒定、能耗低等特點，它不僅適用于卷繞塑料扁絲、折疊絲、裂膜絲，經過適當?shù)母膭?dòng)后對玻璃纖維，碳纖維的單絲卷繞尤為理想，其性能和價格都優于國內同類產品?！?/div>
特點：
1. 卷速度快、成品率高，卷裝平整。
2. 同步輪、同步帶傳動磨損少，噪音低。
3. 鋁合金的支架、連桿，確保了機器的連續使用性。
4. 所用主要部件由數控機床加工，產品精度高。
技術參數:
卷繞線速度： 0-150m/min
扁絲線密度 ：60～1000tex
扁絲寬度 ：0.2～25mm.
卷繞筒管尺寸： 76mm×152mm×180mm
卷筒最大直徑 ：160mm-250mm
往復行程：150mm（可定制）
單錠尺寸： 475mm×325mm
電機功率：100w/220v
電機轉速：1400r/min-2800r/min
The winding machine is mainly used in the production of fiber single silk, and also can be used in light industry, textile, electronics and other production areas.It has high speed winding , wire tube forming good, constant tension, low energy consumption, it is not only suitable for wire winding, folding plastic flat silk, split wire, after appropriate modification of glass fiber, carbon fiber filament winding is ideal, its performance is better than the domestic similar products and prices
Features:
1. Quick roll speed, high yield and smooth roll
2. Synchronous wheel, synchronous belt drive less wear, low noise
3. The supporting and connecting rod of aluminum alloy ensure the continuous use of the machine
4. The main parts are processed by NC machine tool and high precision
Technical parameters:
Winding speed：0-150m/min
Flat wire density：60～1000tex
Flat wire width：0.2～25mm.
Winding bobbin size：76mm×152mm×180mm
The maximum diameter of the drum：160mm-250mm
Reciprocating stroke：150mm（Can be customized）
Single spindle size：475mm×325mm
Motor power：100w/220v
Motor speed：1400r/min-2800r/min
